Variable setGamepadMapping`Const`

setGamepadMapping: {} = addMapping

specify a custom mapping for a specific gamepad id

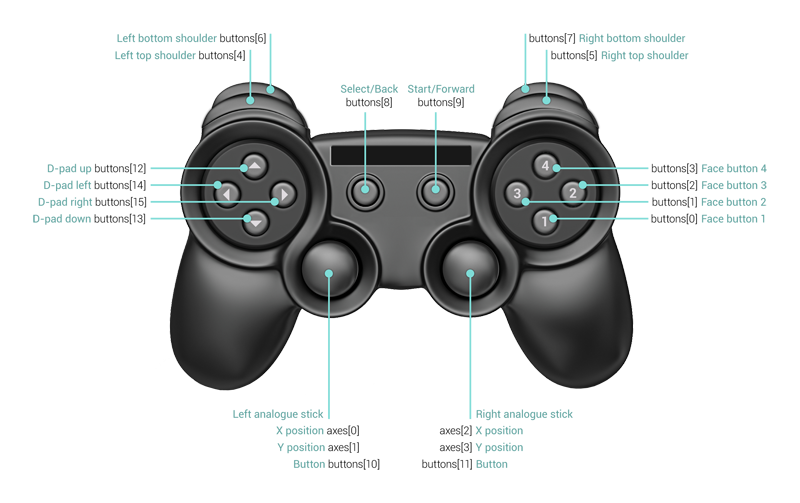

see below for the default mapping :

Type Declaration

Param: id

Gamepad id string

Param: mapping

A hash table

Param: mapping.axes

Standard analog control stick axis locations

Param: mapping.buttons

Standard digital button locations

Param: mapping.analog

Analog axis locations for buttons

Param: mapping.normalize_fn

a function that returns a normalized value in range [-1.0..1.0] for the given value, axis and button

Example

// A weird controller that has its axis mappings reversed
me.input.setGamepadMapping("Generic USB Controller", {
  "axes" : [ 3, 2, 1, 0 ],
  "buttons" : [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 ]
});

// Mapping extra axes to analog buttons
me.input.setGamepadMapping("Generic Analog Controller", {
  "axes" : [ 0, 1, 2, 3 ],
  "buttons" : [ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 ],

  // Raw axis 4 is mapped to GAMEPAD.BUTTONS.FACE_1
  // Raw axis 5 is mapped to GAMEPAD.BUTTONS.FACE_2
  // etc...
  // Also maps left and right triggers
  "analog" : [ 4, 5, 6, 7, -1, -1, 8, 9, -1, -1, -1, -1, -1, -1, -1, -1, -1 ],

  // Normalize the value of button L2: [-1.0..1.0] => [0.0..1.0]
  "normalize_fn" : function (value, axis, button) {
    return ((button === me.input.GAMEPAD.BUTTONS.L2) ? ((value + 1) / 2) : value) || 0;
  }
});
